SPLIT CORE CURRENT TRANSFORMER JP-816 2500/5A Elzen

รายละเอียดสินค้า

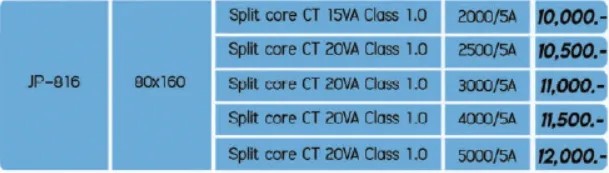

JP SERIES : SPLIT CORE CURRENT TRANSFORMER JP-816 2500/5A

Technical Parameter
Primary current : 2500A
Secondary current : 5A
Class :1.0
Rate load :20VA
Highest voltage : 0. 72kV
Rote frequency : 50/60Hz

Power frequency ‘Withstand voltage : 3kV
Continuous current : 1.2 ln.
Standard specification : IEC61869-2

Application : Elzen transformer for the moded current transformer ,shell ‘With
flame retardant plastic :installation con be fixed and backplane bus bar fixed

installation
Operating temperature : 25 °C- + 55 °C
Storage temperature : 33°C + 70°C
