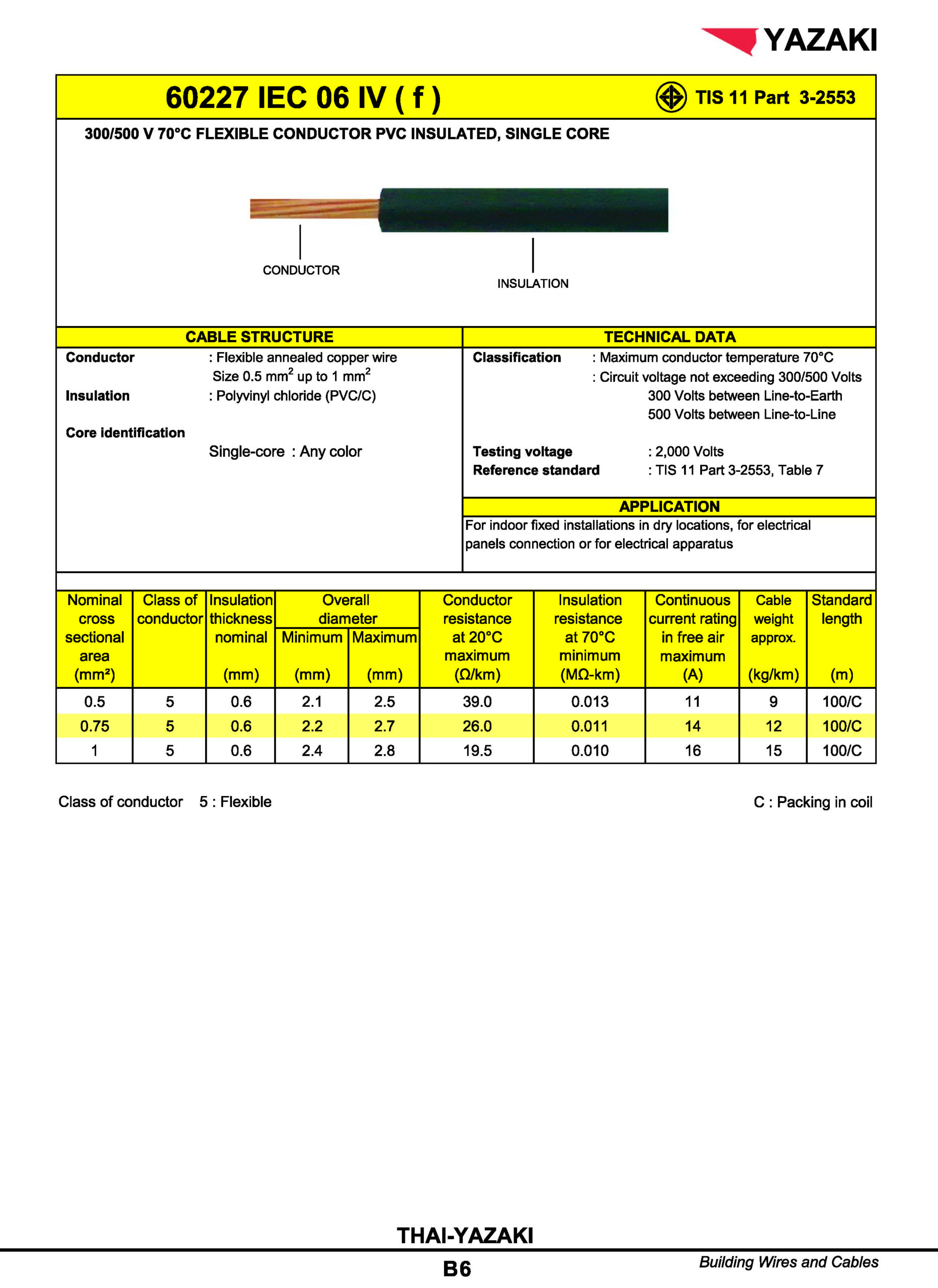

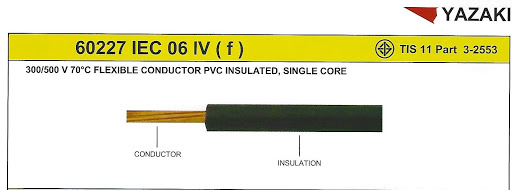

สายไฟ 60227 IEC 06 IV(VSF) 1×1.0 Sq.mm.YAZAKI

สายไฟ IEC06 IV(VSF) 1×1.0 Sq.mm.Yazaki

TECHNICAL DATA
Classification :Maximum conductor tempperature 90C
:Circuit Voltage not exceeding 300/500Volts
300Volts between Line-to-Earth
500Volts between Line-to-Line
Testing Voltage :2,000Volts
Referrence Standard :TIS 11 Part 3-2553,Table 11

CABLE STRUCTURE
Conductor :Flexible annealed copper wire Size 0.5 Sq.mm.up to 2.5 Sq.mm.
Insulation :Polyvinyl choride (PVC/E)
Core identification Single-Core :Any Color
