รายละเอียดสินค้า / Product Specification Display

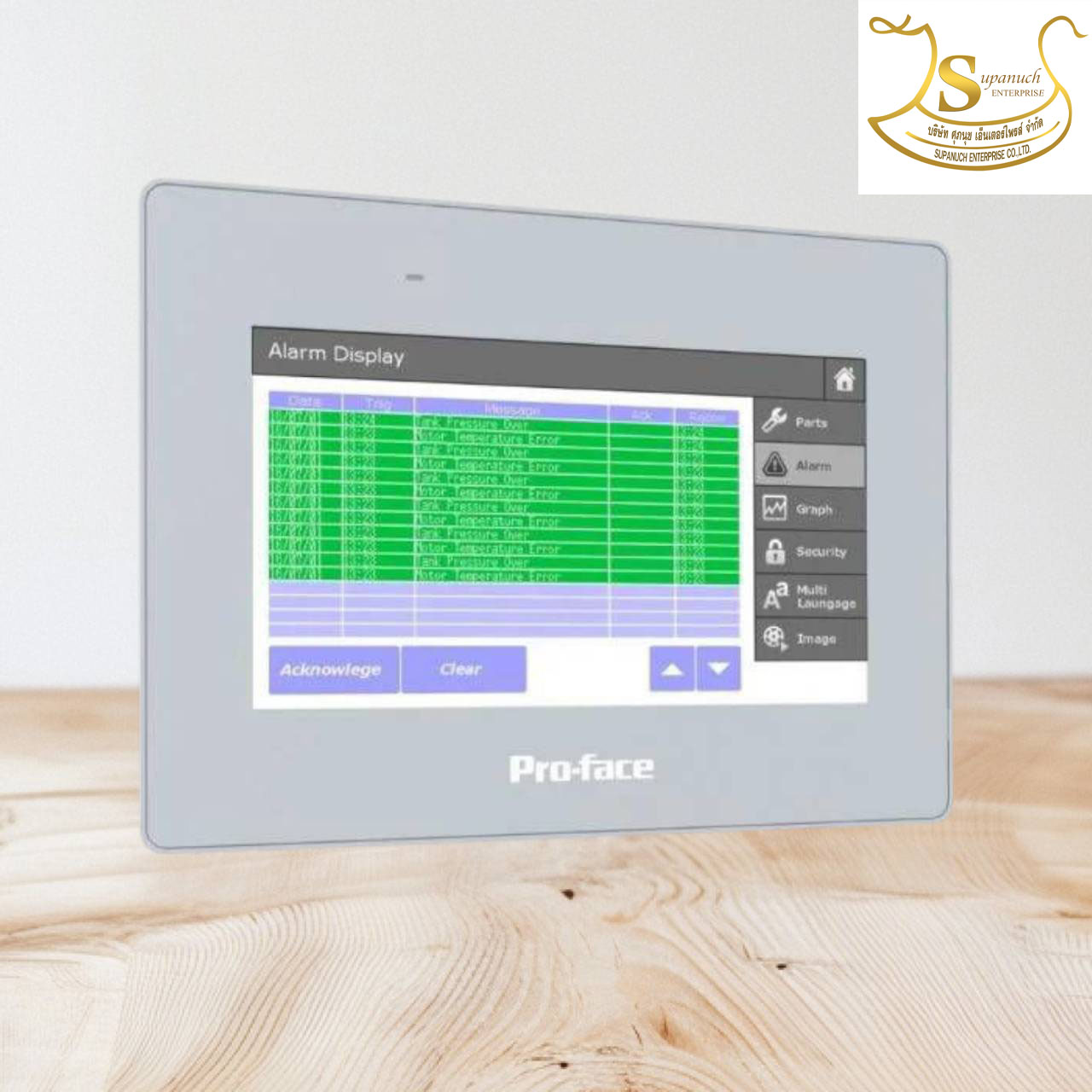

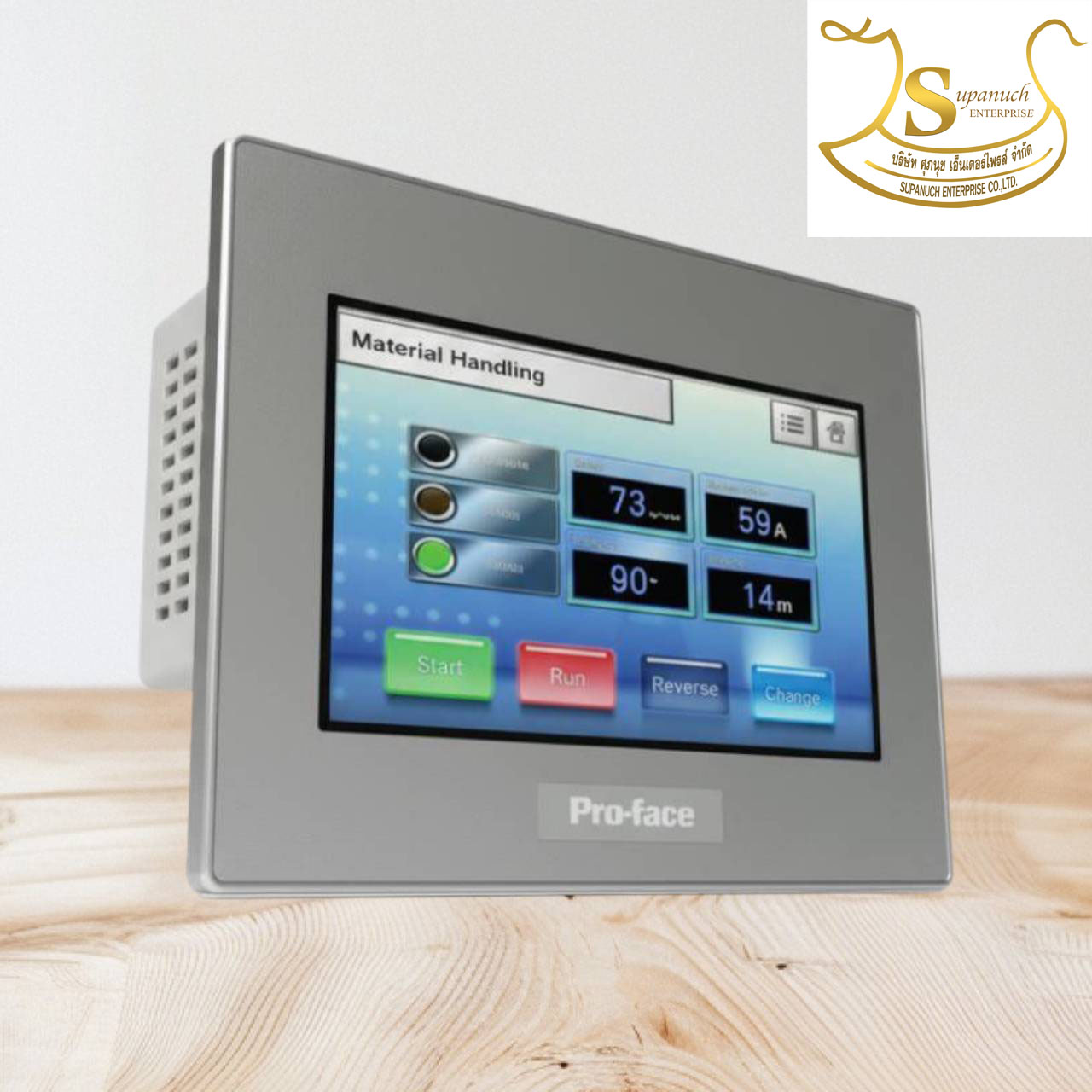

จอแสดงผล HMI PFXET6400WAD-7″ Pro-face by Schneider Electric
Power Supply : 24V DC
Size : 7-inch Wide
Type : TFT Color LCD
Resolution : 800 x 480 pixels (WVGA)
Colors : 16 million colors
Effective Display Area : W154.08 x H85.92 mm.
Backlight : White LED with a service life of 50,000 hours or more
Brightness Control : 16 levels
Touch Panel : Type: Analog resistive (single-touch)
Resolution : 1,024 x 1,024
Lifetime : 1,000,000 touches or more
Electrical : Rated Input Voltage: 24 Vdc
Input Voltage Limits: 19.2 to 28.8 Vdc
Power Consumption : 9 W
In-rush Current : 30 A or less
Interfaces : Ethernet: 1 x RJ-45 (10BASE-T / 100BASE-TX)
COM Ports : 2 x D-Sub 9-pin (COM1: RS-232C; COM2: RS-422/485)
USB : 1 x USB Type A (Host), 1 x USB micro-B (Device)
Environmental and Physical : Operating Temperature: 0 to 50 °C (32 to 122 °F)
Storage Temperature : -20 to +60 °C (-4 to 140 °F)
Protection Rating : IP65F, Type 1, Type 4X (for indoor use only), Type 13 (front panel)

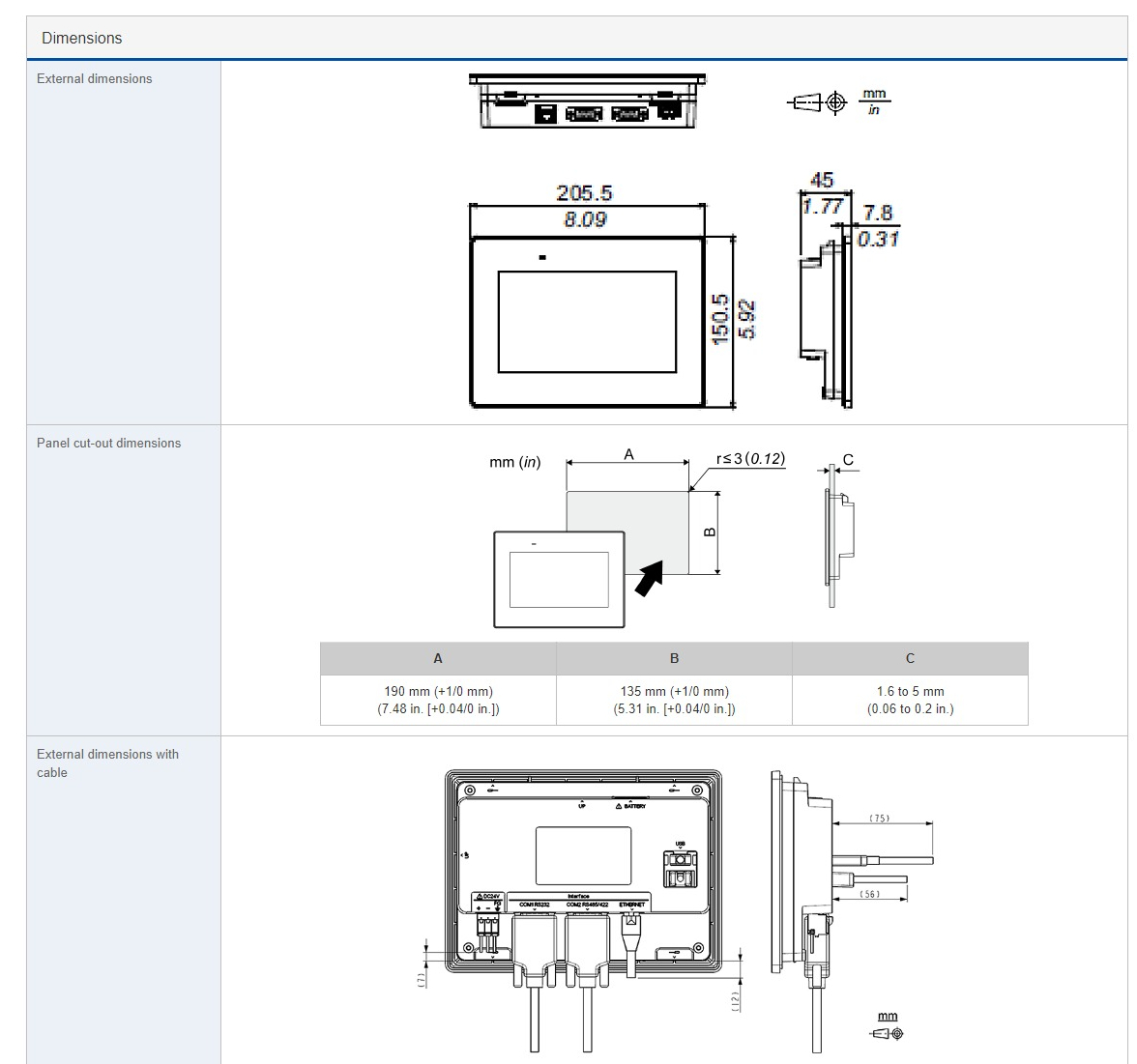

External Dimensions : W205.5 x H150.5 x D45 mm
Panel Cut-out Dimensions : W190 x H135 mm
Weight : 0.8 kg or less
Cooling Method : Natural air circulation
Software and Memory : Development Software: GP-Pro EX
Application Memory : 32 MB
Backup Memory : 128 KB
ขนาดสินค้า Product Size : 18.5 x 28.5 x 8.2 cm
ขนาดบรรจุภัณฑ์ Package Size : 18.5 x 28.5 x 8.2 cm
น้ำหนักสินค้า Weight : 0.895 Kg
น้ำหนักพร้อมบรรจุภัณฑ์ Weight : 0.895 Kg
